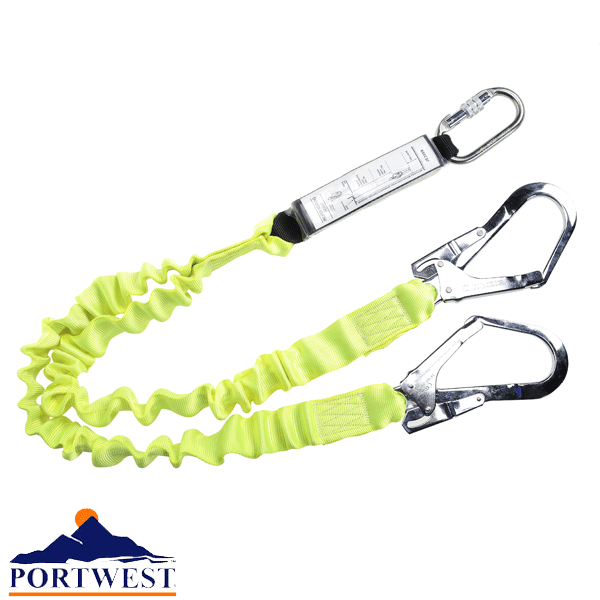

Portwest FP52 Double Elasticated 1.8m Lanyard With Shock Absorber
The Portwest FP52 combines two elasticated webbing legs with a shock absorber in one fall-arrest lanyard assembly. Its twin-leg layout gives a competent person two connection legs to incorporate into an assessed working arrangement. The correct connection sequence and permitted anchorage positions must still follow the supplied instructions.
Elasticated polyester webbing helps keep loose length under control as the wearer moves. This can reduce snagging and tripping risks associated with trailing webbing, although it does not remove the need to manage the work area. The elasticated legs have a different purpose from the separate energy absorber.
Portwest specifies a fully extended length of 1.8 metres including the connectors. The assembly includes two scaffold hooks with 52mm openings and a carabiner with a 19mm opening. Its maximum rated load is 100kg; these figures help with selection but do not establish compatibility with every harness or anchor.
Use FP52 as part of a planned system with suitable clearance, inspection and rescue arrangements. Compare the available fall-prevention equipment when selecting the complete setup. The instructions supplied with the actual product remain the reference for fitting, connection, use and retirement.
Key Features & Benefits
- Twin elasticated legs: polyester webbing helps manage loose length during movement.
- Shock absorber included: an energy-absorbing element forms part of the complete assembly.
- 1.8m fully extended length: the manufacturer's measurement includes the connectors.
- Two scaffold hooks: each has a specified 52mm opening.
- Carabiner connection: the listed opening is 19mm.
- 100kg maximum rated load: selection must also satisfy the limits of the complete system.
- Published standards: Portwest lists EN 354:2010, EN 355:2002 and EN 362:2004, with CE and UKCA marking.
Directions for Use
1. Assess the complete system
Have a competent person confirm the task, compatible harness, approved anchorage arrangement, required clearance and rescue plan. Use the fully extended lanyard length and the manufacturer's other clearance requirements when assessing the system; the contracted appearance is not its maximum reach.
2. Inspect before connecting
Check both webbing legs, stitching, absorber, connectors and identification markings in accordance with the supplied instructions. Remove the assembly from service if damage, deterioration, missing information or faulty connector operation is found. Required periodic examinations remain separate from this pre-use check.
3. Follow the specified connection sequence
Connect and manage both legs only as directed by the manufacturer and the assessed work plan. Check that each connector closes and locks correctly. Use the prescribed arrangement for any unused leg; do not assume that an arbitrary harness attachment point is a suitable parking position.
4. Care for and retire the assembly correctly
Follow the instructions for cleaning, drying, storage and examination records. Protect the equipment from conditions outside its stated limits. After a fall or suspected absorber deployment, remove it from service and follow the manufacturer's withdrawal procedure rather than returning it to use.
Product Specifications
| Specification |
Details |
| Brand and model |
Portwest FP52 |
| Product type |
Double elasticated lanyard with shock absorber |
| Fully extended length |
1.8m including connectors |
| Leg construction |
Two elasticated polyester-webbing legs |
| Materials listed |
Polyester webbing, heat-treated alloy steel, aluminium and PVC |
| Connectors |
Two scaffold hooks and one carabiner |
| Connector openings |
Scaffold hooks: 52mm; carabiner: 19mm |
| Maximum rated load |
100kg |
| Listed standards |
EN 354:2010; EN 355:2002; EN 362:2004 |
| Certification marking |
CE and UKCA |
FAQs
Is 1.8m the contracted length of FP52?
No. Portwest gives 180cm including connectors when the lanyard is fully extended. The elasticated legs shorten when relaxed, but clearance and system selection must use the dimensions and requirements stated in the supplied instructions.
Does the elasticated webbing act as the shock absorber?
No. FP52 has elasticated legs to help manage loose webbing and a separate shock absorber within the assembly. Elastic stretch should not be treated as a substitute for the energy-absorbing component.
Which connectors are included?
The assembly includes two scaffold hooks and a carabiner. Portwest specifies 52mm openings for the hooks and a 19mm opening for the carabiner. Opening size alone does not confirm that a connector is suitable for a particular anchor.
What is the maximum rated load?
Portwest specifies 100kg. Apply that rating using the supplied instructions and check the limits of every component in the complete system, including the harness, connectors and anchorage arrangement.
Does a twin-leg design make every transition suitable?
No. A twin-leg assembly still requires an approved connection sequence, compatible anchor points and sufficient clearance. A competent person must assess the route and specify how the legs are connected and managed throughout the task.
Where can I check the product details before ordering?
Contact Astral Hygiene for help identifying the listed FP52 product and its available documentation. Confirm the supplied instructions and current product markings with the person responsible for selecting the fall-arrest system before putting it into service.
