Portwest FP51 Double 1.8m Webbing Lanyard with Shock Absorber

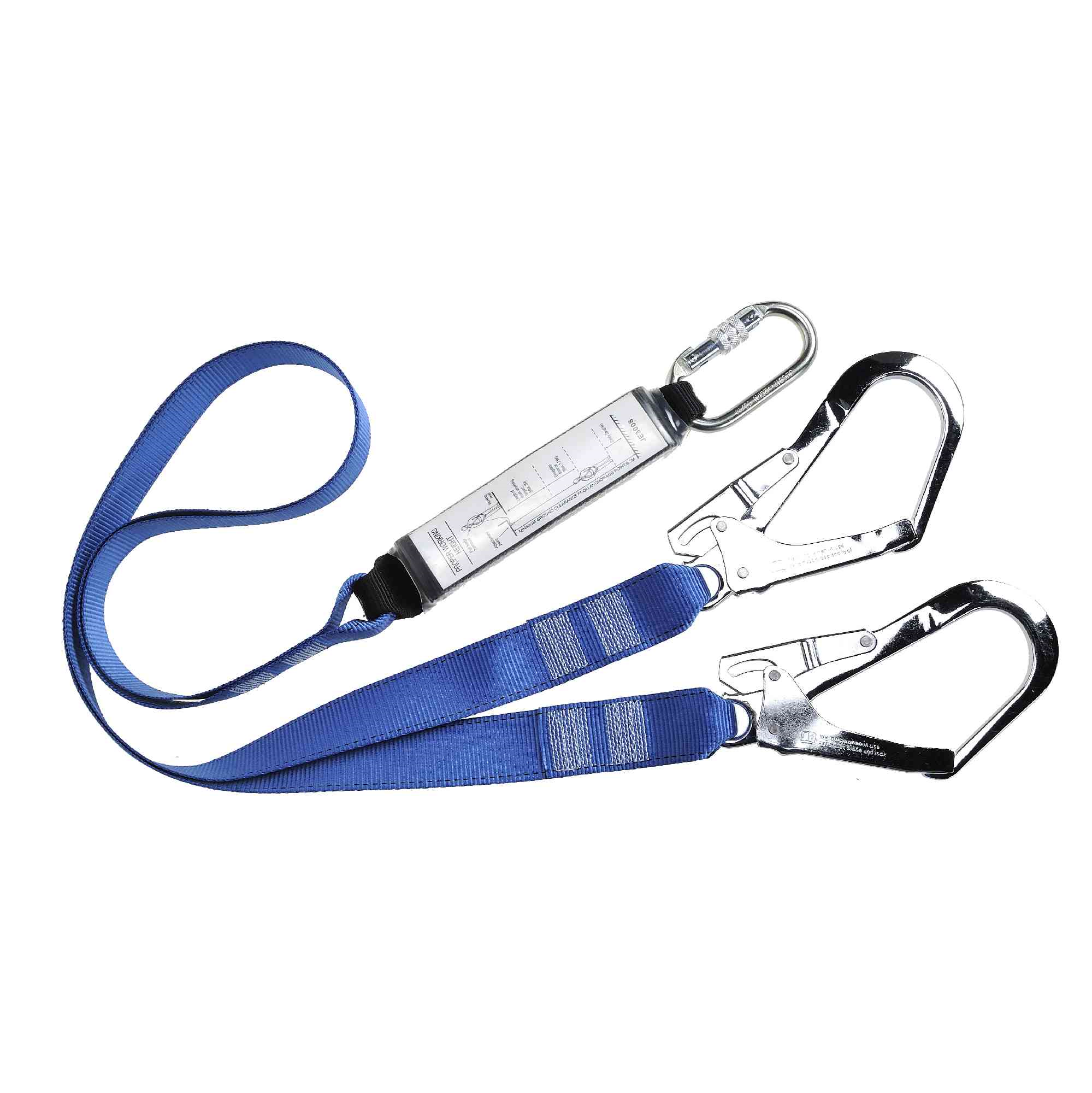

The Portwest FP51 combines two polyester-webbing legs with an energy absorber, two scaffold hooks and a carabiner. It is intended as a component of a compatible fall-arrest system, with an overall length of 1.8m including the connectors. The twin-leg configuration should be selected for the assessed connection method and work area.
Compared with a single-leg webbing assembly, FP51 provides a second leg for a planned sequence of connections between suitable anchorage points. This requires trained use and an approved procedure. The user must follow the manufacturer’s instructions for connecting and stowing either leg, rather than assuming that two hooks provide protection during every movement.
Portwest lists 52mm scaffold-hook openings, a 19mm carabiner opening and a maximum rated load of 100kg. The specified standards are EN 354:2010, EN 355:2002 and EN 362:2004. These details help identify the correct product, while the actual anchorage, harness compatibility and fall clearance must be checked for the complete arrangement.
Use the attached FP51 product sheet alongside the instructions supplied with the equipment when reviewing the specification. Our fall-prevention equipment range includes other lanyard configurations, but selection should follow the task assessment. Maintain the assembly’s inspection history and have rescue arrangements established before work begins.
Key Features & Benefits
- Twin webbing legs: a double-leg configuration for an approved connection sequence.
- Polyester webbing: paired with metal connectors and an integrated energy absorber.
- 1.8m overall assembly: the listed length includes the connectors.
- Two scaffold hooks: each with a manufacturer-listed 52mm opening.
- Connection carabiner: a manufacturer-listed 19mm opening.
- 100kg maximum rated load: subject to the complete user load and system limitations.
- Listed standards: EN 354:2010, EN 355:2002 and EN 362:2004.
Directions for Use
1. Establish the connection and rescue plan
A competent person must confirm that a twin-leg lanyard suits the task and specify the anchorage points, compatible full-body harness and connection procedure. Check the required clearance and rescue arrangements before work. The listed assembly length is not a statement of minimum fall clearance.
2. Inspect both webbing legs and the absorber
Carry out the manufacturer’s checks on both legs, stitching, terminations, energy absorber, hooks, carabiner and identification. Verify connector operation and the required examination records. Quarantine the assembly if there is damage, absorber activation or uncertainty about its history or condition.
3. Follow the approved sequence for both legs
Use only compatible attachment points and the procedure specified for the work. Confirm that connector gates close and secure correctly without interference or unsuitable loading. Follow the supplied instructions for the unused leg as well as the connected leg; do not improvise stowage or attachment arrangements.
4. Maintain and withdraw the equipment correctly
Keep the product identification and inspection records available, and follow the prescribed cleaning, drying, storage and examination requirements. Remove FP51 from service after a fall or suspected damage. Observe the manufacturer’s retirement criteria and do not attempt to reset an activated absorber.
Product Specifications
| Specification |
Details |
| Brand and model |
Portwest FP51 |
| Product type |
Twin webbing lanyard with energy absorber |
| Overall length |
1.8m including connectors |
| Materials |
Polyester webbing, heat-treated alloy steel, aluminium and PVC |
| Connectors |
Two scaffold hooks and one carabiner |
| Scaffold-hook openings |
52mm |
| Carabiner opening |
19mm |
| Maximum rated load |
100kg |
| Listed standards |
EN 354:2010; EN 355:2002; EN 362:2004 |
FAQs
How long is the complete FP51 assembly?
Portwest lists a length of 1.8m including connectors. Use that complete assembly dimension when assessing the product, and determine the required clearance separately from the manufacturer’s instructions for the selected system.
Does the twin-leg design guarantee safe transitions?
No. The second leg supports an approved connection sequence only when the anchorage arrangement and operating procedure are suitable. Correct use, including the treatment of an unused leg, must follow the instructions and the competent person’s work plan.
Which connectors are included?
FP51 includes two scaffold hooks with 52mm openings and a carabiner with a 19mm opening. These gate dimensions do not establish compatibility on their own; check the shape, closure and loading of each connection.
Is the 100kg rating an allowance for tools?
No. It is the manufacturer’s maximum rated load for the equipment. Check the supplied instructions when determining the complete user load, including carried equipment, and respect the limitations of every component in the system.
Can one undamaged leg be used after a fall?
Do not treat the legs as independent replacement lanyards. Remove the complete assembly from service after a fall, absorber activation or suspected damage, and follow Portwest’s retirement instructions. Appearance alone does not establish that any part remains suitable for use.
Where can I confirm the product details before ordering?
The attached FP51 PDF provides manufacturer product information. For clarification of the model or listed specification, contact Astral Hygiene. A competent person must confirm the complete fall-arrest arrangement and the procedure intended for the work.
