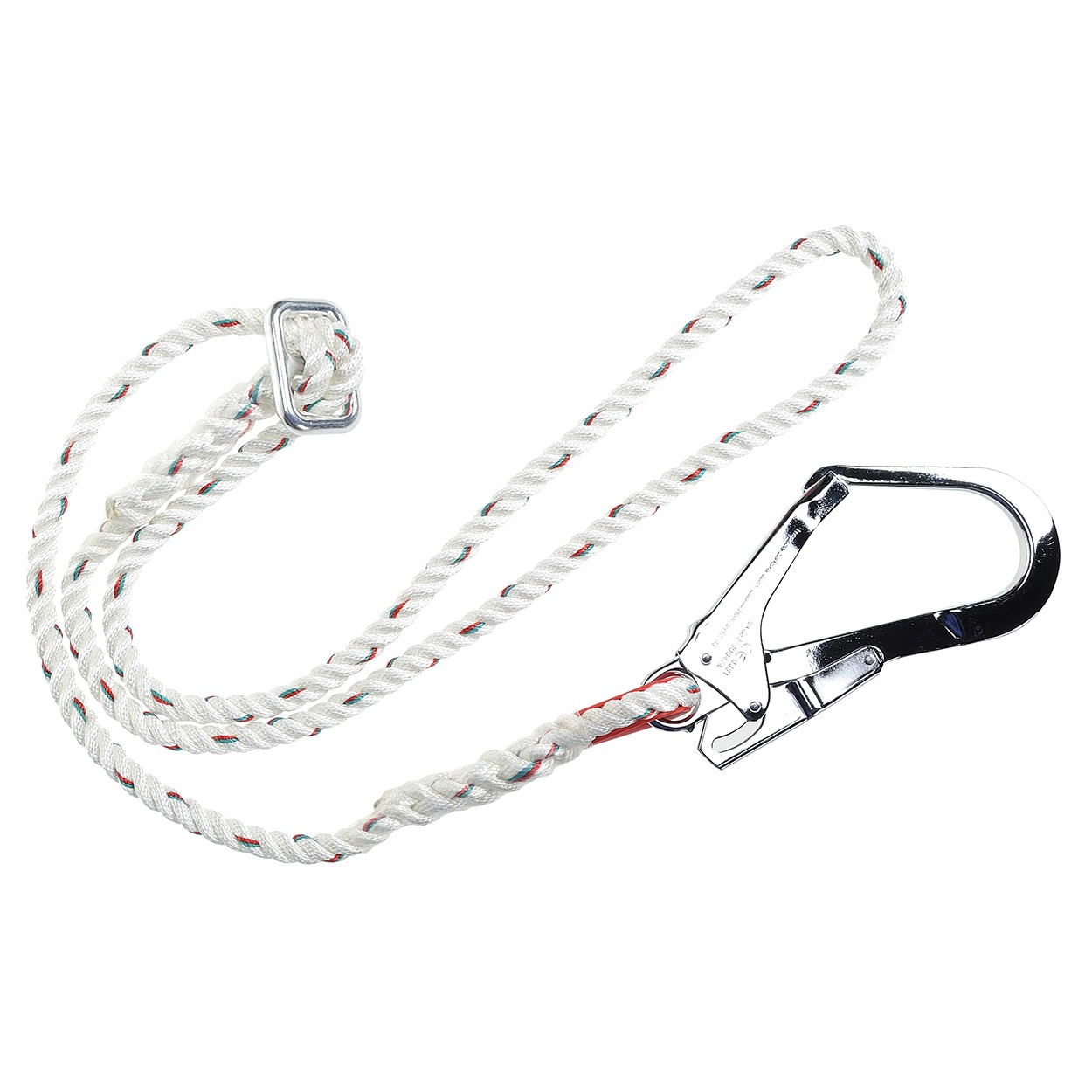

Portwest FP22 Adjustable 2m Restraint Lanyard
The Portwest FP22 is an adjustable rope lanyard for a planned work-restraint arrangement. Portwest specifies an overall length of 2m including the connectors. The adjustment mechanism allows the working length to be set for the assessed task, with the aim of preventing the wearer from reaching an edge or other fall hazard.
Polyester rope forms the main body of the assembly, with metal components and abrasion-resistant thimbles protecting the attachment loops. The supplied connectors are a carabiner and a scaffold hook. Their listed gate openings are 19mm and 52mm respectively, giving useful selection information without replacing a full compatibility check.
FP22 differs from a fixed-length restraint lanyard because its working length can be adjusted. That flexibility requires a correctly planned anchorage position and a check of the wearer’s permitted reach. It does not make every position safe, and the absence of an energy absorber means this model must not be treated as a complete fall-arrest system.
The manufacturer lists EN 354:2010 and EN 358:2018, with a maximum rated load of 100kg. Select the lanyard alongside compatible fall-prevention equipment and read the supplied instructions before use. The attached FP22 product sheet remains available for reference; the current product marking and instructions govern the equipment in service.
Key Features & Benefits
- Adjustable working length: allows the restraint arrangement to be set for an assessed working area.
- 2m overall length: Portwest’s stated measurement includes the connectors.
- Polyester-rope construction: combined with heat-treated alloy steel and aluminium components.
- Thimble-protected loops: abrasion-resistant protection at the attachment interfaces.
- Carabiner and scaffold hook: connector openings of 19mm and 52mm respectively.
- 100kg maximum rated load: subject to the complete system and manufacturer’s operating limits.
- Documented standards: EN 354:2010 and EN 358:2018 are listed for the model.
Directions for Use
1. Assess the anchorage and permitted reach
A competent person must establish a restraint arrangement that prevents the wearer reaching a fall hazard. Confirm the anchorage, compatible harness or belt, approved attachment point and suitable working length. Do not use the 2m overall dimension as evidence that the system is safe for a particular location.
2. Inspect before fitting
Check the rope, adjustment mechanism, terminations, protective thimbles, connectors and labels in accordance with the supplied instructions. Confirm that required examinations are current and the equipment history is known. Remove any damaged or suspect assembly from service before work starts.
3. Connect and adjust as instructed
Use only compatible attachment points and follow Portwest’s fitting and adjustment instructions. Check that connectors close and secure correctly and that the selected length limits the wearer’s reach as planned. Reassess the arrangement if the anchorage or work area changes; do not improvise alterations to the lanyard.
4. Maintain records and care for the equipment
Follow the manufacturer’s requirements for cleaning, drying, storage, periodic examination and retirement. Keep identification and records with the equipment. Quarantine the lanyard if its condition or history becomes uncertain, and have the appropriate competent person determine the next step.
Product Specifications
| Specification |
Details |
| Brand and model |
Portwest FP22 |
| Product type |
Adjustable restraint lanyard |
| Overall length |
2m including connectors |
| Materials |
Polyester rope, heat-treated alloy steel and aluminium |
| Connectors |
Carabiner and scaffold hook |
| Carabiner opening |
19mm |
| Scaffold-hook opening |
52mm |
| Loop protection |
Abrasion-resistant thimbles |
| Maximum rated load |
100kg |
| Listed standards |
EN 354:2010; EN 358:2018 |
| Energy absorber |
Not included |
FAQs
Does the 2m length include the connectors?
Yes. Portwest specifies a 200cm overall length including connectors. When planning the restraint system, consider the complete connection arrangement and the wearer’s permitted reach, rather than the rope length in isolation.
How does FP22 differ from a fixed restraint lanyard?
FP22 has an adjustment mechanism so its working length can be set for the task. A fixed-length model has no equivalent adjustment. The appropriate choice depends on the assessed anchorage layout, working area and manufacturer’s instructions.
Can FP22 arrest a fall on its own?
No. It is a restraint lanyard without an energy absorber and must not be treated as a standalone fall-arrest system. The planned arrangement must keep the wearer away from the fall hazard rather than rely on this lanyard to arrest a fall.
What load limit applies?
The manufacturer states a maximum rated load of 100kg. Follow the supplied instructions when assessing the complete user load, including carried equipment, and check the limitations of the other components selected for the system.
Are the hook openings enough to confirm compatibility?
No. The 19mm carabiner and 52mm scaffold-hook openings are only part of the assessment. A competent person must also consider the anchorage geometry, connector loading and locking operation, together with the approved connection method.
Where can I check the product specification?
The attached FP22 product sheet provides manufacturer information, and this page includes the listed dimensions and standards. For clarification before ordering, contact Astral Hygiene. Use the instructions supplied with the actual equipment for fitting, examination and retirement decisions.
