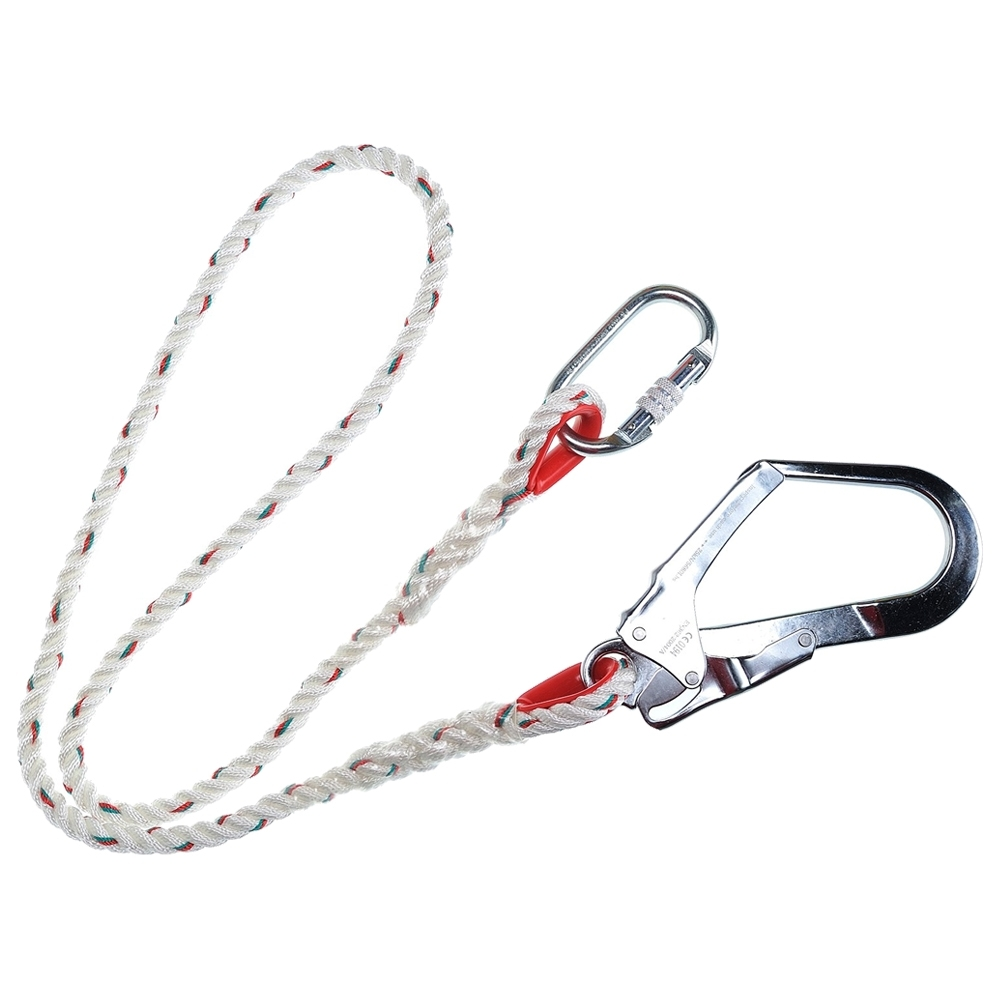

Portwest FP21 Single 1.5m Restraint Lanyard
The Portwest FP21 is a fixed-length rope lanyard for an assessed restraint system. Its 1.5m length suits tasks where the selected anchorage and complete equipment arrangement keep the wearer from reaching an edge or other fall hazard. The permitted working area must be established before use; the lanyard alone does not define a safe position.
The assembly combines polyester rope with a carabiner and a scaffold hook. Abrasion-resistant thimbles protect the attachment loops, while the two connector types provide different connection interfaces. Portwest lists a 19mm carabiner opening and a 52mm scaffold-hook opening. These measurements describe the gates and do not establish whether a particular anchorage is suitable.
Portwest specifies EN 354:2010 and EN 358:2018 for FP21, with a maximum rated load of 100kg. The lanyard has no energy absorber and must not be treated as a complete fall-arrest system. A competent person must confirm the intended restraint application, compatible attachment points and the limitations of every component in the assembly.
When selecting from our fall-prevention equipment, match the lanyard to the task and the supplied instructions. FP21 has a fixed length rather than an adjustment device, so the anchorage layout is central to its suitability. Keep identification legible and maintain the inspection records required for the equipment in service.
Key Features & Benefits
- Fixed 1.5m length: a defined-length rope assembly for a planned restraint arrangement.
- Polyester rope: the manufacturer-specified rope material for this model.
- Protected attachment loops: abrasion-resistant thimbles reinforce the loop interfaces.
- Two connector types: supplied with a carabiner and scaffold hook for compatible connections.
- Documented gate openings: 19mm for the carabiner and 52mm for the scaffold hook.
- 100kg maximum rated load: check the user’s complete load and all applicable system limits.
- Listed standards: EN 354:2010 and EN 358:2018, subject to the model’s intended use and instructions.
Directions for Use
1. Confirm the restraint plan
Have a competent person assess the task, anchorage location, compatible harness or belt and approved attachment point. The complete arrangement must prevent access to the fall hazard. Do not assume that a fixed 1.5m lanyard is suitable for every working area or that its standards permit standalone fall arrest.
2. Inspect the complete assembly
Before each use, inspect the rope, terminations, thimbles, connectors and identification according to Portwest’s instructions. Check that the connector mechanisms operate correctly and that examination records are current. Quarantine damaged, altered or suspect equipment rather than attempting an unauthorised repair.
3. Connect and check the working area
Fit the lanyard only to the compatible points specified in the restraint plan and manufacturer instructions. Confirm that connectors close and secure correctly, without unsuitable loading or interference. Check the permitted reach before starting work; do not modify the assembly or use knots to improvise a different configuration.
4. Care for and retire the lanyard
Follow the supplied cleaning, drying, storage and periodic-examination requirements. Protect the equipment from conditions outside its permitted limits and keep its history traceable. Remove it from service if its condition, identification or history is uncertain, and follow the manufacturer’s retirement criteria.
Product Specifications
| Specification |
Details |
| Brand and model |
Portwest FP21 |
| Product type |
Single restraint lanyard |
| Length |
1.5m, fixed |
| Materials |
Polyester rope, aluminium and heat-treated alloy steel |
| Connectors |
Carabiner and scaffold hook |
| Carabiner opening |
19mm |
| Scaffold-hook opening |
52mm |
| Loop protection |
Abrasion-resistant thimbles |
| Maximum rated load |
100kg |
| Listed standards |
EN 354:2010; EN 358:2018 |
| Energy absorber |
Not included |
FAQs
Is FP21 a fall-arrest lanyard?
FP21 is listed as a restraint lanyard and has no energy absorber. Its intended restraint arrangement must prevent the wearer reaching a fall hazard. Do not use it as a standalone fall-arrest system or infer a different application from the connector style.
Can the 1.5m length be adjusted?
FP21 is a fixed-length 1.5m model. It does not have the adjustment device used on an adjustable restraint lanyard. If the task requires a different reach, a competent person should select an appropriate assembly rather than alter this one.
Which connectors are supplied?
The lanyard includes a carabiner with a 19mm opening and a scaffold hook with a 52mm opening. Gate size alone does not confirm compatibility: the connection geometry, loading and locking arrangement must also comply with the supplied instructions.
What is the maximum rated load?
Portwest states a maximum rated load of 100kg. Check how the supplied instructions define the complete user load, including carried equipment, and observe any lower limit imposed by another component in the system.
Which standards does Portwest list?
The manufacturer lists EN 354:2010 and EN 358:2018 for FP21. These designations must be read alongside the product marking and instructions. They do not remove the need to assess the anchorage, permitted working area and compatibility of the complete restraint arrangement.
What should be checked before ordering?
Confirm the model, fixed length, connector interfaces and rated load against the assessed task. If you need clarification of the listed product specification, contact Astral Hygiene. Final system selection and approval for the work must remain with a competent person.
