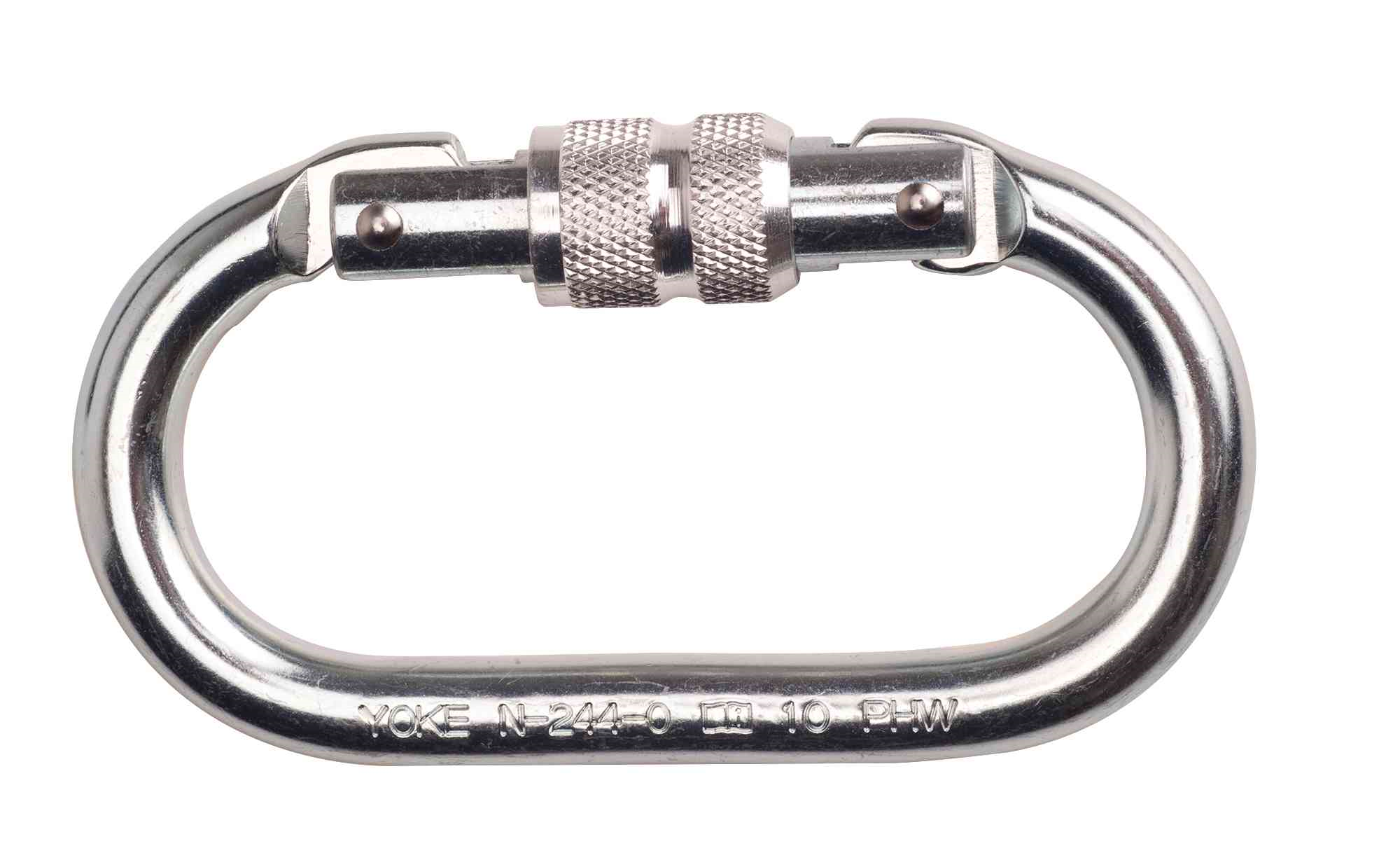

Portwest FP30 Steel Oval Screwgate Carabiner
The Portwest FP30 is an oval steel carabiner with a manual screw-lock gate. It provides a connector option for compatible fall-protection equipment selected for the task. The locking sleeve must be secured as instructed; closing the gate alone is not the complete locking procedure.
Portwest specifies a 106mm overall length and a 19mm gate opening. These dimensions are useful when comparing connectors and checking the available attachment space. Suitability also depends on the shape of the connected parts, the loading direction and the instructions for every component in the arrangement.
Heat-treated alloy steel forms the connector body, with a stated breaking load of 25kN. The manufacturer separately lists a maximum rated load of 100kg and the connector standard EN 362:2004 Class B. A breaking-load figure does not establish a lifting capacity or approve a particular connection.
Include FP30 within the complete equipment assessment, inspection routine and rescue planning for the work. The wider fall-prevention range can help identify the other components under consideration. Final selection and use must follow the supplied instructions and the competent person's assessment.
Key Features & Benefits
- Oval connector shape: for compatible equipment connections within an assessed system.
- Manual screw-lock gate: a locking sleeve that the user secures as instructed.
- 19mm opening: the manufacturer's specified gate clearance.
- 106mm overall length: a key dimension for identification and fit checks.
- Heat-treated alloy steel: with a listed breaking load of 25kN.
- Published rating and standard: 100kg maximum rated load and EN 362:2004 Class B.
- Manufacturer certification: CE certified and UKCA marked in the published datasheet.
Directions for Use
1. Choose a compatible connection
Check the FP30 instructions and those for the harness, lanyard or other connected equipment. Have a competent person confirm the intended use, opening size, connector orientation and loading direction before the system is put into service.
2. Check the body and locking mechanism
Inspect for damage, wear, corrosion, deformation or contamination. Check that the gate and screw sleeve move and secure correctly and that markings are readable. Remove the carabiner from service if its condition or operation is doubtful.
3. Close and secure the screw gate
Make the connection using the manufacturer's specified method, then close the gate and secure the locking sleeve as directed. Check the completed connection and ensure that connected parts cannot force the gate or load the connector incorrectly.
4. Follow examination and retirement instructions
Maintain the required inspection records and examination schedule. Follow the supplied instructions for cleaning and protected storage. Withdraw equipment after a fall or suspected damage and apply the manufacturer's assessment and retirement requirements.
Product Specifications
| Specification |
Details |
| Brand and model |
Portwest FP30 |
| Product type |
Oval screwgate carabiner |
| Material |
Heat-treated alloy steel |
| Overall length |
106mm |
| Gate opening |
19mm |
| Locking action |
Manual screw lock |
| Listed breaking load |
25kN |
| Maximum rated load |
100kg |
| Listed standard |
EN 362:2004 Class B |
| Certification marking |
CE and UKCA, as listed in the manufacturer datasheet |
| Colour |
Silver |
FAQs
Does the FP30 gate lock automatically?
No. FP30 uses a manual screw-lock sleeve. Follow the supplied instructions to close the gate, secure the sleeve and check the connection before use; do not treat gate closure as automatic locking.
What are its length and gate opening?
Portwest gives an overall length of 106mm and a gate opening of 19mm. Check both dimensions alongside connector shape and the equipment instructions when assessing whether the connection is suitable.
Can the 25kN figure be used as a lifting capacity?
No. It is the stated breaking load, not an authorised lifting capacity. Portwest separately lists a 100kg maximum rated load; the supplied instructions and complete system assessment govern the intended use.
Which connector standard is listed for FP30?
Portwest lists EN 362:2004 Class B. Confirm the product markings and supplied documentation when identifying the actual connector, and check compatibility with the other components selected for the task.
Is ten years of service guaranteed?
No. The manufacturer's ten-year shelf-life statement begins at the manufacturing date shown on the label. Use, damage, inspection findings and the product's withdrawal criteria can require retirement sooner.
Where can I check the specification before purchase?
Contact Astral Hygiene for help identifying FP30 and the available product information. Ask the competent person responsible for equipment selection to confirm the connection and loading arrangement before use.
