Portwest FP11 One Point Full-Body Harness
The Portwest FP11 One Point Harness is a straightforward full-body model with a rear dorsal D-ring. Its single attachment arrangement suits assessed systems that call for a rear harness connection. This makes the FP11 easy to distinguish from models offering front chest loops or a separate positioning belt, while keeping equipment selection focused on the actual work method.

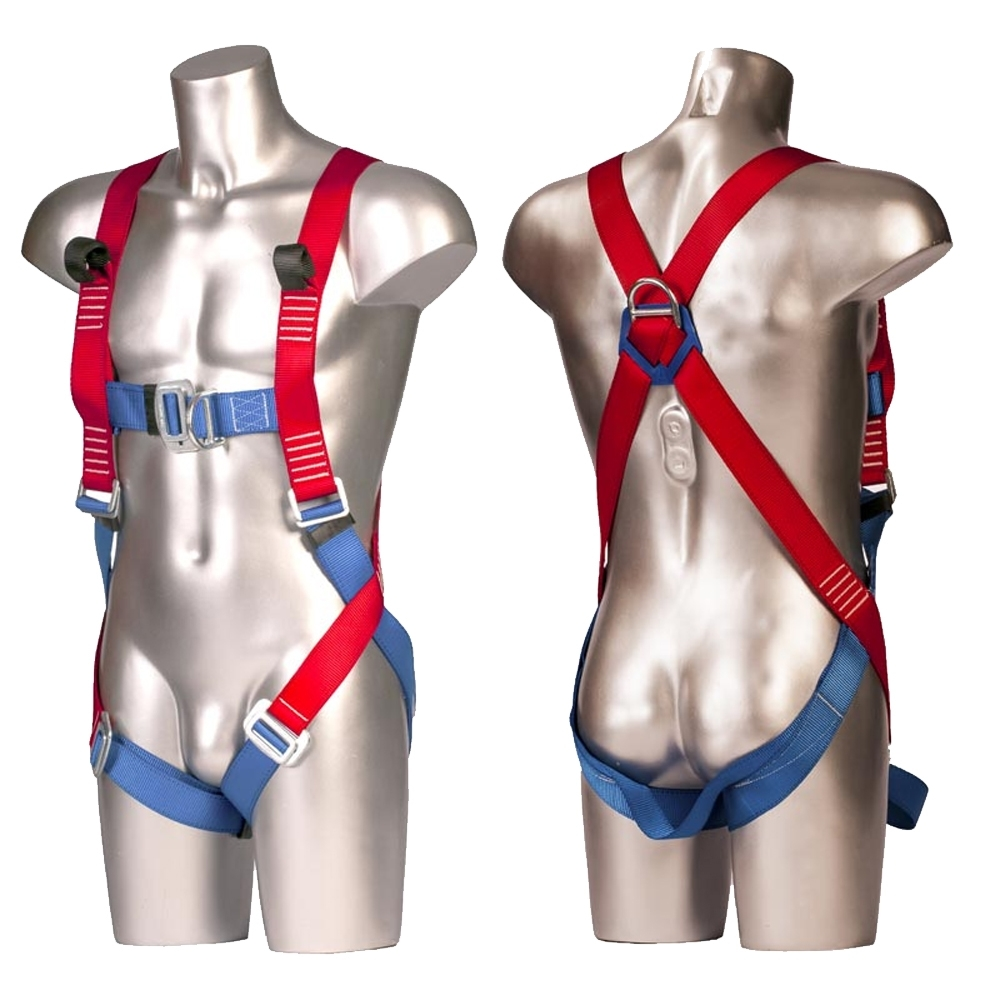

Polyester webbing forms the body of the harness, with heat-treated alloy steel hardware and flat-bar buckles. Chest and leg adjustments allow the fit to be set for the individual user and their work clothing. The front and rear product views show the red and blue strap arrangement and the dorsal connection.
Portwest lists EN 361:2002 and a maximum rated load of 100kg for the FP11. A protective cover helps preserve the product label used for identification and inspection records. Check these details alongside the limits of the other fall-prevention equipment specified for the planned system.
The harness does not include the complete arrangement needed for safe work at height. Suitable anchorage, compatible connecting equipment, adequate clearance where applicable and rescue provision must all be assessed. For help confirming the FP11 product specification before ordering, contact Astral Hygiene with the model reference and the equipment details you need to check.
Key Features & Benefits
- Single rear attachment: a dorsal D-ring provides the model's specified harness connection.
- Adjustable fit: chest and leg adjustment points allow the straps to be set for the wearer.
- Polyester webbing: used with heat-treated alloy steel hardware in the full-body construction.
- Flat-bar buckles: provide the strap adjustment hardware described by Portwest.
- Protected identification label: a cover helps preserve information needed for equipment checks.
- Manufacturer specification: EN 361:2002 and a 100kg maximum rated load are listed for the FP11.
Directions for Use
1. Confirm the task requires a rear attachment
A competent person should select the FP11 as part of a compatible system. Check that its rear attachment arrangement, rated load and fit meet the planned requirements. Read all supplied instructions and establish suitable anchorage, connecting equipment, clearance and rescue arrangements.
2. Check the harness before each use
Inspect webbing, stitching, the dorsal D-ring, buckles and labels. Confirm the equipment's history and required examination records before issue. Keep the harness out of service if it has arrested a fall, shows damage or has an uncertain condition.
3. Fit and connect using the supplied instructions
Follow Portwest's fitting sequence and adjust the chest and leg straps over the user's work clothing. Ensure webbing is correctly routed and buckles are secured. Use the marked dorsal attachment with compatible equipment; do not create an improvised connection to another strap or fitting.
4. Store and maintain the equipment
Follow the manufacturer's cleaning, drying, storage and retirement guidance. Protect the harness from damaging conditions and keep its identification and inspection records available. Arrange recorded examinations by a competent person at the required intervals, as well as the routine pre-use checks.
Product Specifications
| Specification |
Details |
| Brand / model |
Portwest FP11 |
| Product type |
One Point full-body harness |
| Attachment arrangement |
One rear dorsal D-ring |
| Materials |
Polyester webbing and heat-treated alloy steel |
| Adjustment |
Chest and legs |
| Buckles |
Flat-bar type |
| Identification |
Product label with protective cover |
| Maximum rated load |
100kg; follow the supplied limits |
| Standard listed by Portwest |
EN 361:2002 |
| Intended system role |
Harness component within a compatible, assessed height-safety system |
FAQs
Does FP11 have a front attachment?
This one-point model provides a rear dorsal D-ring. Do not treat the chest adjustment strap as a front attachment. If the work method needs a front connection or a positioning belt, select a model with the appropriate documented functions.
What is the difference between FP11 and a two-point harness?
The FP11 has a single rear attachment arrangement. Other models can provide additional connection functions, which vary by model. Select the harness for the assessed system and read the actual attachment specification rather than relying on the number in the product name alone.
How is the harness adjusted?
Chest and leg adjustment points allow the fit to be set for the wearer. Follow Portwest's fitting instructions, check the webbing routing and secure the buckles. Correct fit must be checked over the clothing used for the task.
What standard and load rating does Portwest list?
Portwest lists EN 361:2002 and a maximum rated load of 100kg. Check the supplied instructions and the ratings of all components when selecting the system. A higher rating on another item does not increase the harness limit.
Does the harness include everything needed for fall protection?
No. Suitable connecting equipment and anchorage are required, together with an assessed work method, clearance where applicable and rescue arrangements. Trained users need to understand the complete system and follow the instructions supplied with every component.
When should the FP11 be withdrawn from use?
Remove it from service after a fall, if damage is found or whenever its condition or history is doubtful. Follow Portwest's assessment and retirement instructions and keep suspect equipment separate. A clean appearance does not replace pre-use inspection or recorded examinations.
