Portwest FP18 Three Point Comfort Plus Harness
The Portwest FP18 Three Point Comfort Plus Harness combines an adjustable full-body design with padding at the shoulders, legs and lower back. It offers a practical option when an assessed work-at-height task calls for a harness with several specified attachment functions. The padded areas help make the harness more comfortable to wear while the straps are adjusted to the individual user.

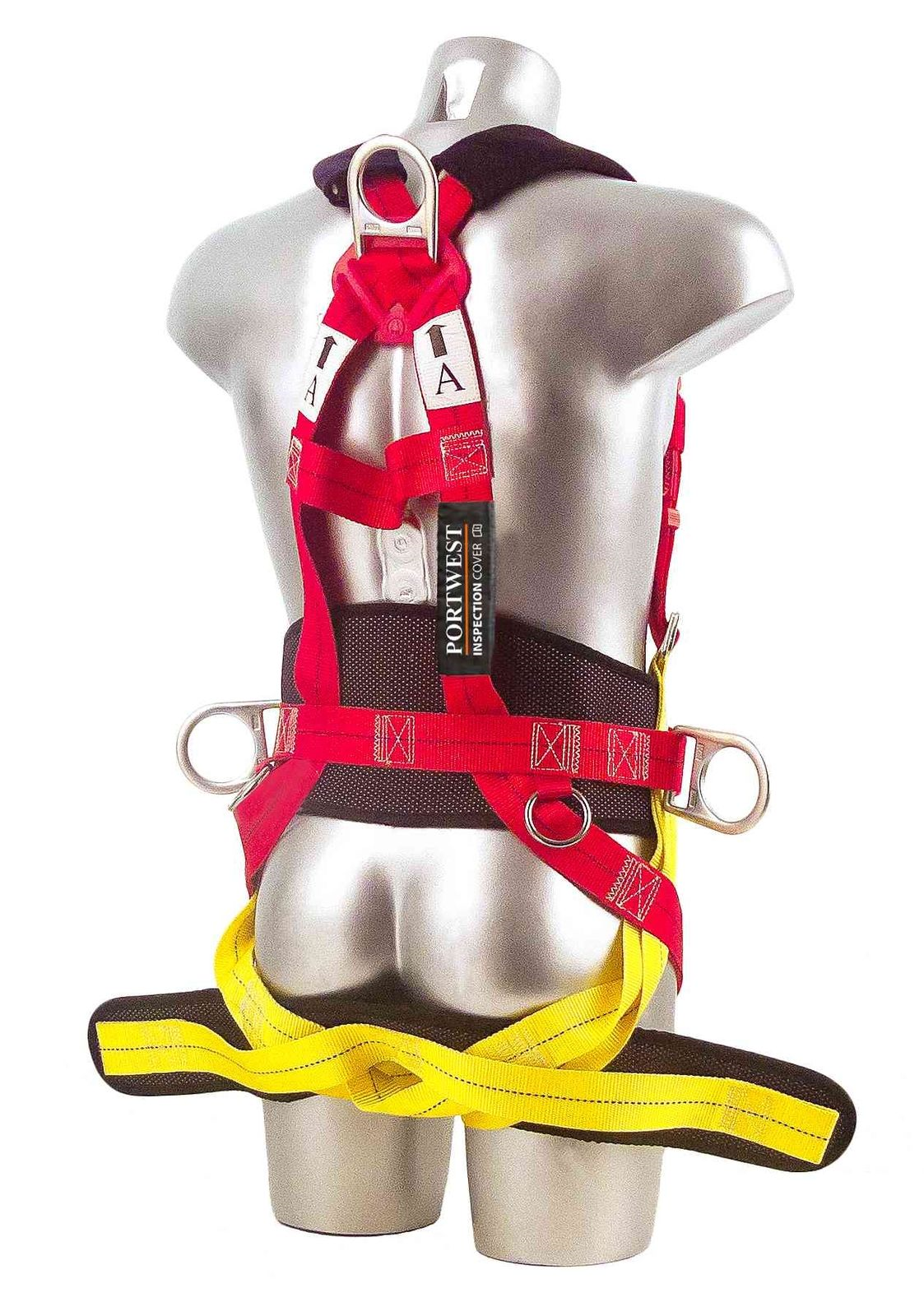

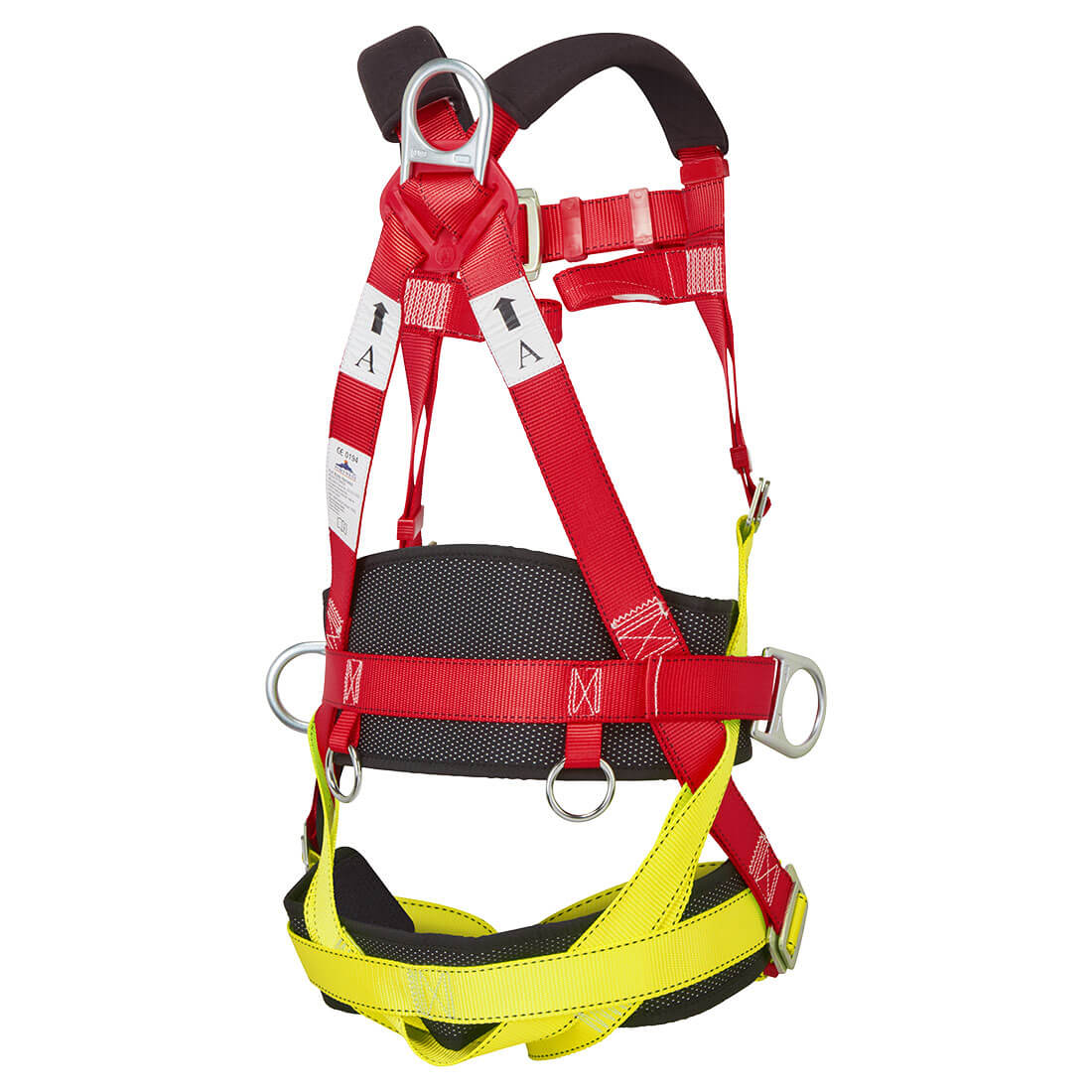

The attachment arrangement includes two chest loops, a sliding rear dorsal D-ring and two side D-rings. Portwest also identifies two seating loops and two lower-back rings. Each connection must be used for the purpose shown in the supplied instructions and markings; the number of rings does not make every attachment suitable for arresting a fall.
Nylon webbing and heat-treated alloy steel form the main construction, with flat-bar buckles and a cover protecting the product label. Portwest specifies a maximum rated load of 100kg and lists EN 361:2002, EN 358:2018 and EN 1497:2007. These details help a competent person assess the harness alongside compatible fall-prevention equipment for the planned work.
Correct fit, suitable anchorage and a workable rescue plan remain essential parts of the complete system. Consider how the user will reach and connect the permitted attachment points, and follow the limits of every component. If you need to confirm the FP18 specification before ordering, contact Astral Hygiene with the model and application details.
Key Features & Benefits
- Padded contact areas: shoulder, leg and lower-back padding supports comfort during wear.
- Adjustable fit: the full-body strap arrangement can be adjusted in accordance with Portwest's fitting instructions.
- Specified attachment options: chest loops, a sliding dorsal D-ring and side positioning rings provide distinct connection functions.
- Nylon webbing construction: combined with heat-treated alloy steel hardware and flat-bar buckles.
- Protected identification: a label cover helps protect the information needed for equipment identification and checks.
- Documented performance: Portwest lists EN 361:2002, EN 358:2018 and EN 1497:2007, with a 100kg maximum rated load.
Directions for Use
1. Select the complete system for the task
A competent person should assess the work method, permitted connections, component compatibility and rescue arrangements. Read the instructions supplied with the FP18 and the other equipment. Check that the rated loads and intended functions suit the planned use before issuing the harness.
2. Inspect the harness before fitting
Check webbing, stitching, padding, buckles, rings and identification labels before each use. Confirm that required examinations are current and that the equipment history is known. Keep the harness out of service if it is damaged, has arrested a fall or its condition is in doubt.
3. Fit and connect as instructed
Put on and adjust the harness using Portwest's fitting sequence, ensuring the webbing is correctly routed and the buckles are secured. Use only the attachment points specified for the chosen system. Side positioning rings must not be used as fall-arrest attachment points; check anchorage and clearance before work begins.
4. Maintain records and store carefully
After use, check the harness again and follow Portwest's cleaning, drying and storage guidance. Protect it from conditions that could damage the webbing or hardware. Maintain inspection records and arrange examinations by a competent person at the required intervals, following the manufacturer's retirement criteria.
Product Specifications
| Specification |
Details |
| Brand / model |
Portwest FP18 |
| Product type |
Three Point Comfort Plus full-body harness |
| Colour |
Red |
| Materials |
Nylon webbing and heat-treated alloy steel |
| Main attachments |
Two chest loops, sliding dorsal D-ring and two side D-rings |
| Additional loops / rings |
Two seating loops and two lower-back rings; follow the supplied purpose markings |
| Padding |
Shoulders, legs and lower back |
| Adjustment hardware |
Flat-bar buckles |
| Maximum rated load |
100kg; observe the supplied instructions and component limits |
| Standards listed by Portwest |
EN 361:2002; EN 358:2018; EN 1497:2007 |
| Identification |
Product label with protective cover |
FAQs
Can every ring on the FP18 be used for fall arrest?
No. The harness has attachments with different functions. Follow the markings and Portwest instructions for the chosen system; side positioning rings are not fall-arrest points, and additional loops or rings must not be treated as interchangeable connections.
Where is the Comfort Plus padding?
Padding is provided at the shoulders, legs and lower back. It supports wearer comfort but does not replace correct adjustment. Check the fit over the clothing that will be worn for the task and follow the supplied fitting guidance.
What maximum rated load does Portwest specify?
Portwest lists a maximum rated load of 100kg for the FP18. Check the supplied instructions when assessing the user and equipment, and observe the limits of every part of the complete system. A different component's higher rating does not increase the harness rating.
Which standards are listed for this harness?
The manufacturer lists EN 361:2002, EN 358:2018 and EN 1497:2007. Use the product markings and current supplied documentation when checking suitability. The listed standards do not remove the need to assess the working arrangement and each attachment's permitted function.
Does EN 1497 mean the harness suits every rescue method?
No. A rescue arrangement must be planned for the particular task, environment and equipment. A competent person must establish compatible connections and procedures, with trained users ready to carry out the plan. Do not assume that a certification covers an unassessed rescue method.
What should happen after a fall or suspected damage?
Remove the harness from service and follow Portwest's assessment and retirement instructions. Keep suspect equipment separate so it cannot be issued accidentally. Pre-use checks and recorded examinations remain necessary even when the harness looks clean and has been stored carefully.
