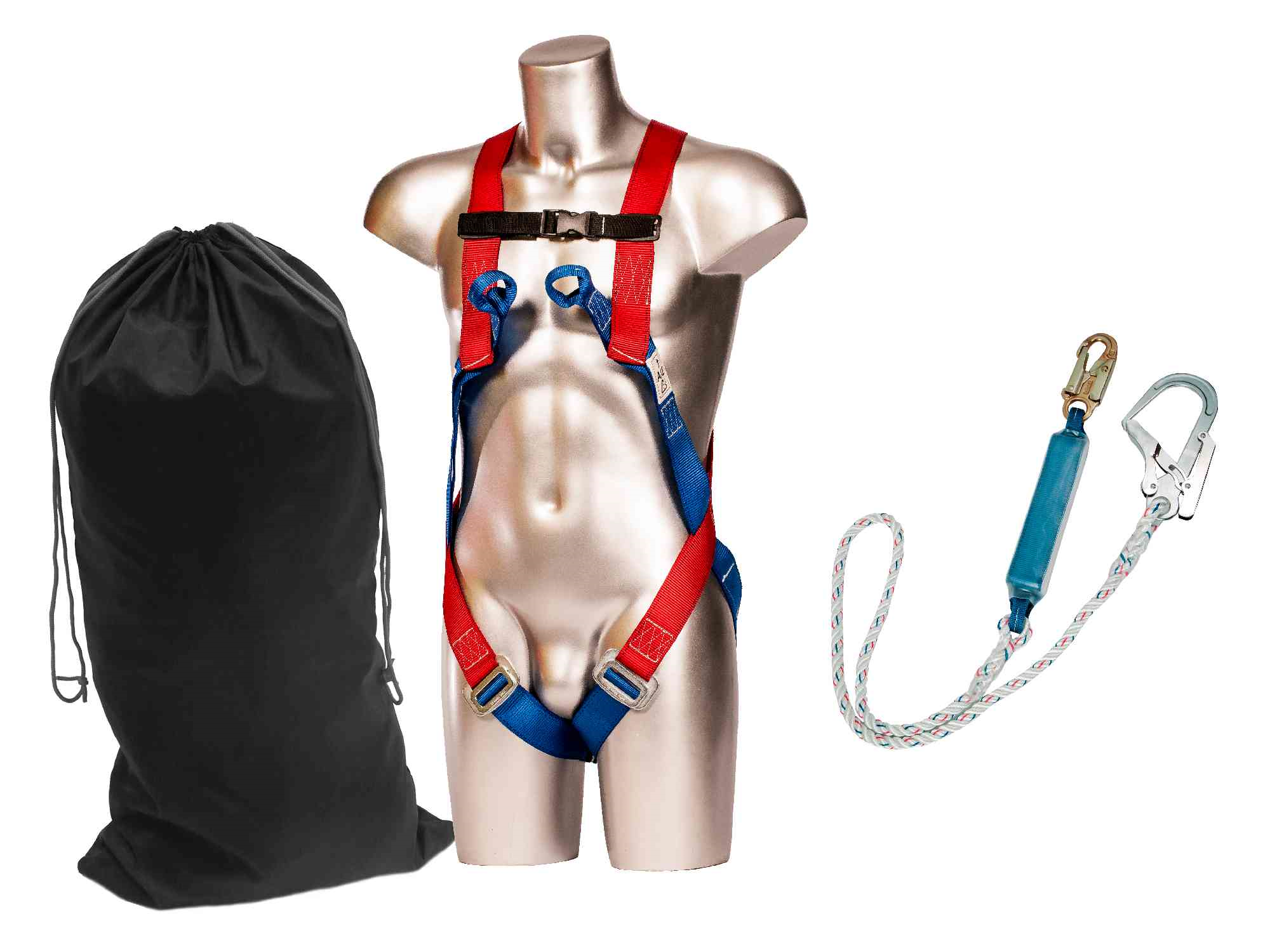

FP62 - Fall Arrest Kit

The Portwest FP11 One Point Harness is a full-body harness with a rear dorsal D-ring for connection within a suitable height-safety system. Its polyester webbing, chest and leg adjustments and metal buckles allow the fit to be set for the individual wearer. The simple attachment arrangement helps distinguish it from harnesses that also provide front or positioning connections. Select the FP11 for a planned restraint or fall-arrest system only after checking the task, compatible connecting equipment and the supplied product limits. The harness is one component of that system. Trained users must follow the fitting instructions, inspect it before use and have appropriate rescue arrangements in place.

The Portwest FP64 Scaffolding Kit combines a two-point Comfort Plus harness with a double lanyard, shock absorber, snap hook and two scaffold hooks. A nylon drawstring bag is included for storage and transport. Portwest lists shoulder adjustment positions and a maximum rated load of 100kg for the kit. The twin-leg lanyard supports a planned connection sequence between suitable anchorage points. Safe use still depends on compatible equipment, correct harness fitting, sufficient clearance and a rescue plan. A competent person must assess the task and specify how the equipment is used. Follow all supplied component instructions and inspect the complete kit before each use; remove damaged or suspect items from service.

The Portwest FP40 Web Fall Arrest Block provides a 3-metre retractable webbing lifeline for a compatible fall-protection system. The unit has an ABS housing, polyethylene webbing, a connection carabiner and a swivel snap hook with a double safety lock and load indicator. Portwest lists EN 360 and EN 362, with a maximum rated load of 100kg. Retractable equipment still requires a suitable anchorage, compatible harness, sufficient clearance and a rescue plan. A competent person must check the intended use and operating limits before work begins. Inspect the block, webbing, connectors and indicator as instructed, and remove the equipment from service after a fall or if its condition is doubtful.

The Portwest FP41 Retractable Fall Arrest Block has a 10-metre steel-wire lifeline housed on a spring-loaded reel. Its 4.8mm wire rope extends and retracts with controlled movement, while the unit incorporates an inertia brake, protective ABS housing and a swivel snap hook with a double safety lock and fall indicator. Select this block as part of a compatible system with suitable anchorage, a full-body harness, sufficient clearance and rescue arrangements. The linked Portwest sheet dated 14 February 2022 lists a 100kg maximum rated load; confirm the supplied unit’s label and current instructions before ordering or use. A competent person must check the application, complete user load and operating limits.
