Portwest FP08 Padded Work Positioning Belt
The Portwest FP08 Work Positioning Belt provides padded support around the waist for use within a compatible positioning system. It is an adjustable belt with two side D-rings, allowing the working arrangement to be set according to Portwest's instructions. The black padding and red webbing shown in the product images make the belt's construction easy to identify.
The belt adjusts from 85cm to 125cm, so fit should be checked over the clothing worn for the task. Polyester webbing provides the main strap material, while the padded section sits around the waist. The D-rings can be repositioned as described by Portwest; their placement and use must follow the selected system's instructions.
Portwest lists EN 358:2018 and a maximum rated load of 100kg for FP08. Its intended function is work positioning, and it must not be used to arrest a fall. A competent person should determine the required fall-prevention equipment, including separate fall protection wherever the task requires it.

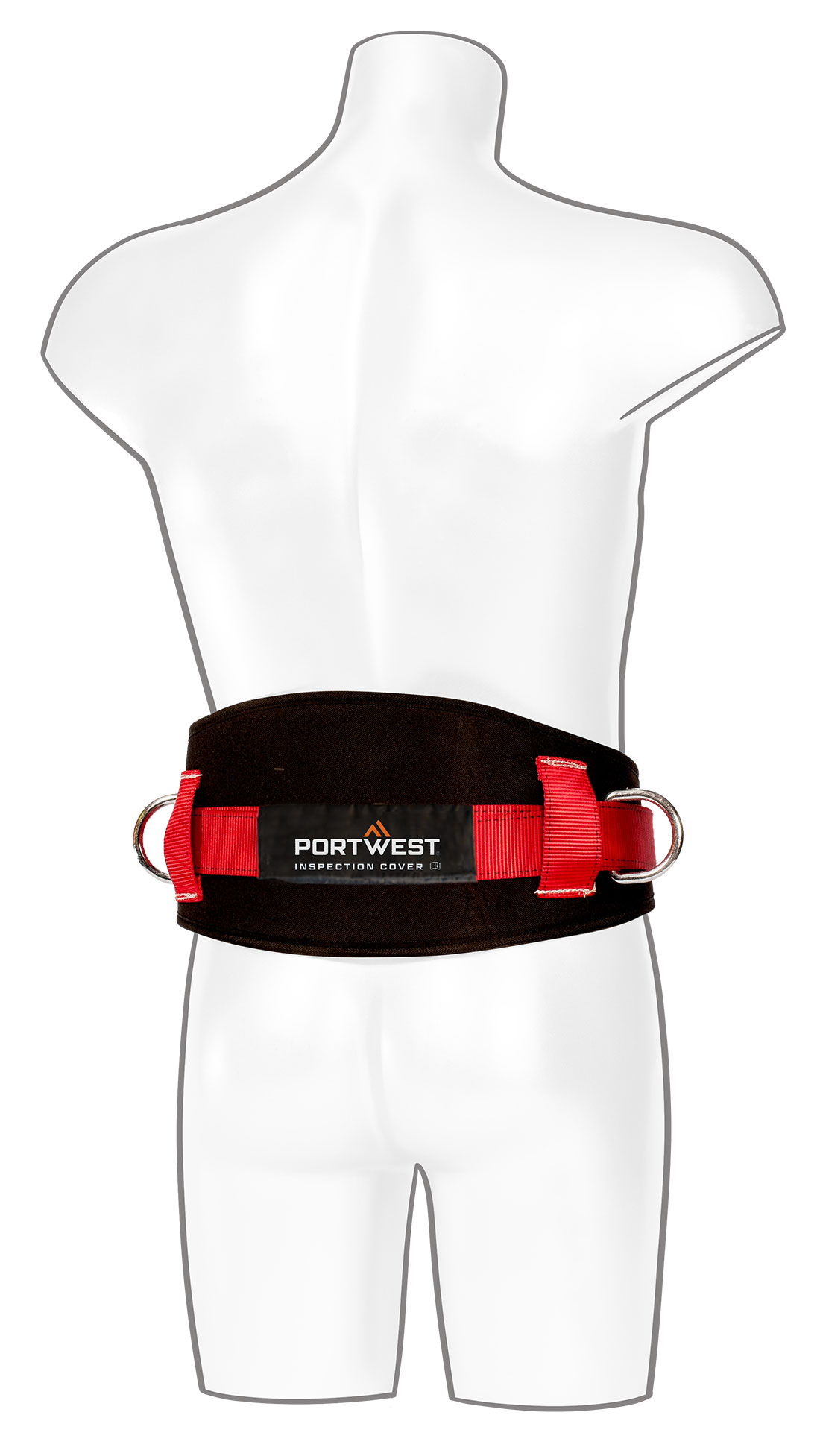

A protective cover helps preserve the belt's identification label for equipment checks and records. Inspect the belt before issue and include it in the planned examination and maintenance routine. If you need help confirming the FP08 specification or adjustment range before ordering, contact Astral Hygiene with the model reference and the details you need to check.
Key Features & Benefits
- Padded waist section: supports comfort when the belt is correctly fitted for positioning work.
- 85–125cm adjustment: allows the belt to be set within Portwest's stated range.
- Two adjustable side D-rings: provide the specified positioning connections; follow the supplied arrangement instructions.
- Polyester webbing: forms the main belt strap construction.
- Protected product label: a cover helps preserve information needed for identification and inspections.
- Defined positioning specification: Portwest lists EN 358:2018 and a 100kg maximum rated load.
Directions for Use
1. Plan the positioning system
Have a competent person assess the task, anchorage and compatible connecting equipment. Confirm that positioning is the intended function and identify any separate fall protection needed. Check the 100kg maximum rated load and all supplied component limits, with rescue arrangements established before work.
2. Inspect the belt and its records
Check the webbing, stitching, padding, buckle, D-rings and label before each use. Confirm that the equipment history is known and required examinations are current. Remove the belt from service if it is damaged, has been involved in a fall or has an uncertain condition.
3. Adjust the waist fit and connections
Fit the belt over the intended work clothing using Portwest's instructions and its 85–125cm adjustment range. Secure the buckle and position the D-rings only as instructed. Use the permitted positioning connection method; do not use the belt or its rings as fall-arrest equipment.
4. Maintain and store after use
Follow the manufacturer's cleaning, drying and storage guidance and protect the belt from damaging conditions. Keep its identification and inspection records available, and arrange competent-person examinations at the required intervals. Apply the supplied retirement criteria whenever condition or service history raises doubt.
Product Specifications
| Specification |
Details |
| Brand / model |
Portwest FP08 |
| Product type |
Padded work positioning belt |
| Intended function |
Work positioning; not fall arrest |
| Adjustment range |
85–125cm |
| Attachments |
Two adjustable side D-rings |
| Main strap material |
Polyester webbing |
| Appearance |
Black padding with red webbing as shown |
| Maximum rated load |
100kg; follow the manufacturer's supplied limits |
| Standard listed by Portwest |
EN 358:2018 |
| Identification |
Product label with protective cover |
FAQs
Can FP08 replace a full-body fall-arrest harness?
No. The FP08 is a positioning belt and must not be used to arrest a fall. A competent person must assess the complete task and specify any separate fall protection needed, along with compatible components and rescue arrangements.
What waist adjustment range does the belt provide?
Portwest states an adjustable range of 85–125cm. Check the fit over the clothing intended for the task and follow the supplied fitting instructions. Being within the nominal range does not remove the need to confirm a secure, correct fit.
Can the D-rings be repositioned?
Portwest describes two adjustable side D-rings that can be moved towards the rear. Reposition and connect them only in accordance with the manufacturer's instructions for the assessed system. Moving a ring does not change the belt into fall-arrest equipment.
What standard and load rating are listed?
Portwest lists EN 358:2018 and a maximum rated load of 100kg. Check the supplied instructions for the user and equipment limits and observe every component's requirements. The rating applies within the intended positioning function.
Does the padded design guarantee comfort throughout a shift?
The padded waist section is intended to support comfort, but fit, clothing, work method and duration all matter. Check the adjustment before use and select the equipment for the assessed task. Padding does not compensate for an unsuitable positioning arrangement.
Does an age limit alone determine whether the belt is safe to use?
No. Condition, history, inspections and Portwest's retirement criteria also determine whether equipment can remain in service. Check before every use and withdraw a damaged, fall-involved or suspect belt, even if it is within the manufacturer's stated age limit.
