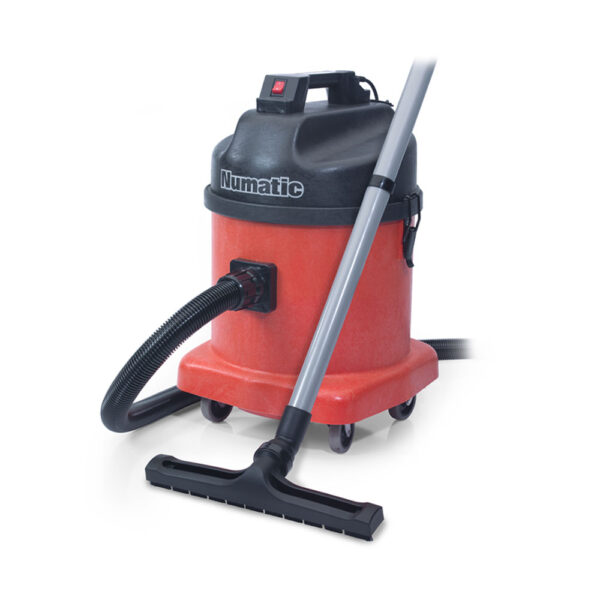

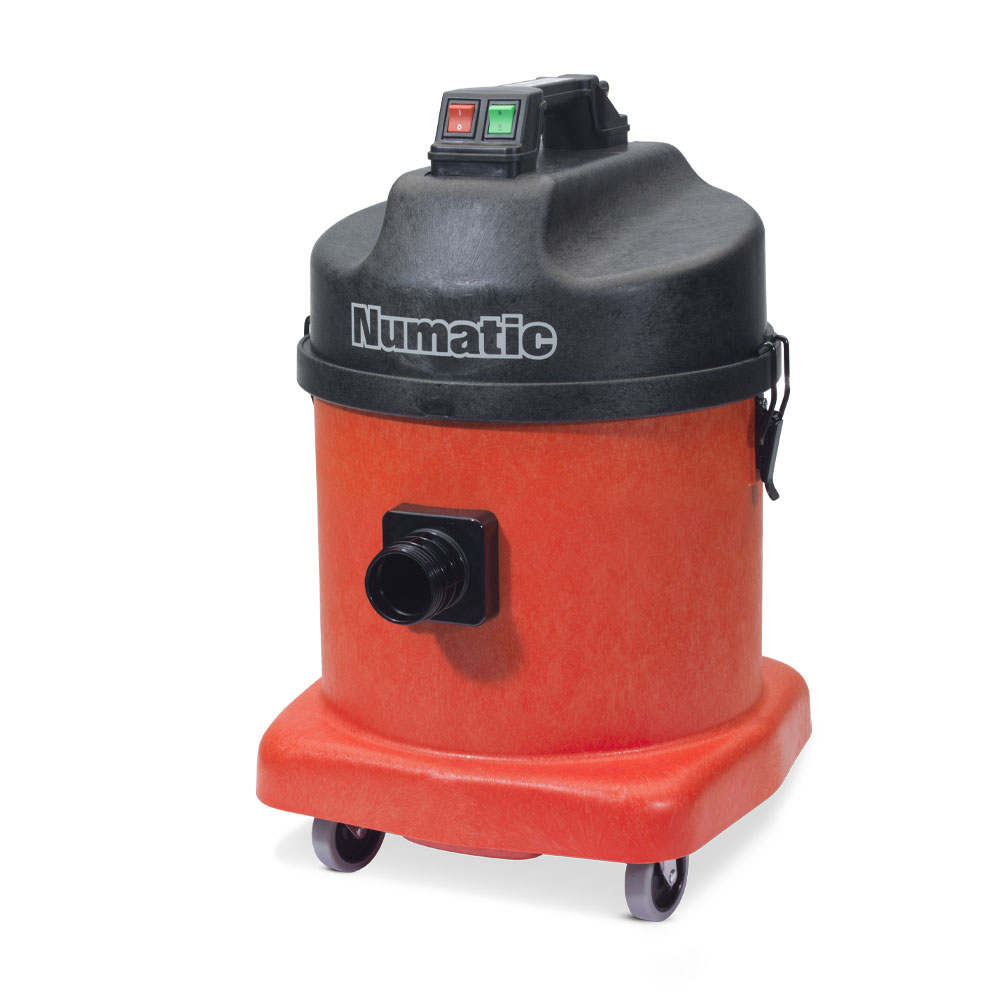

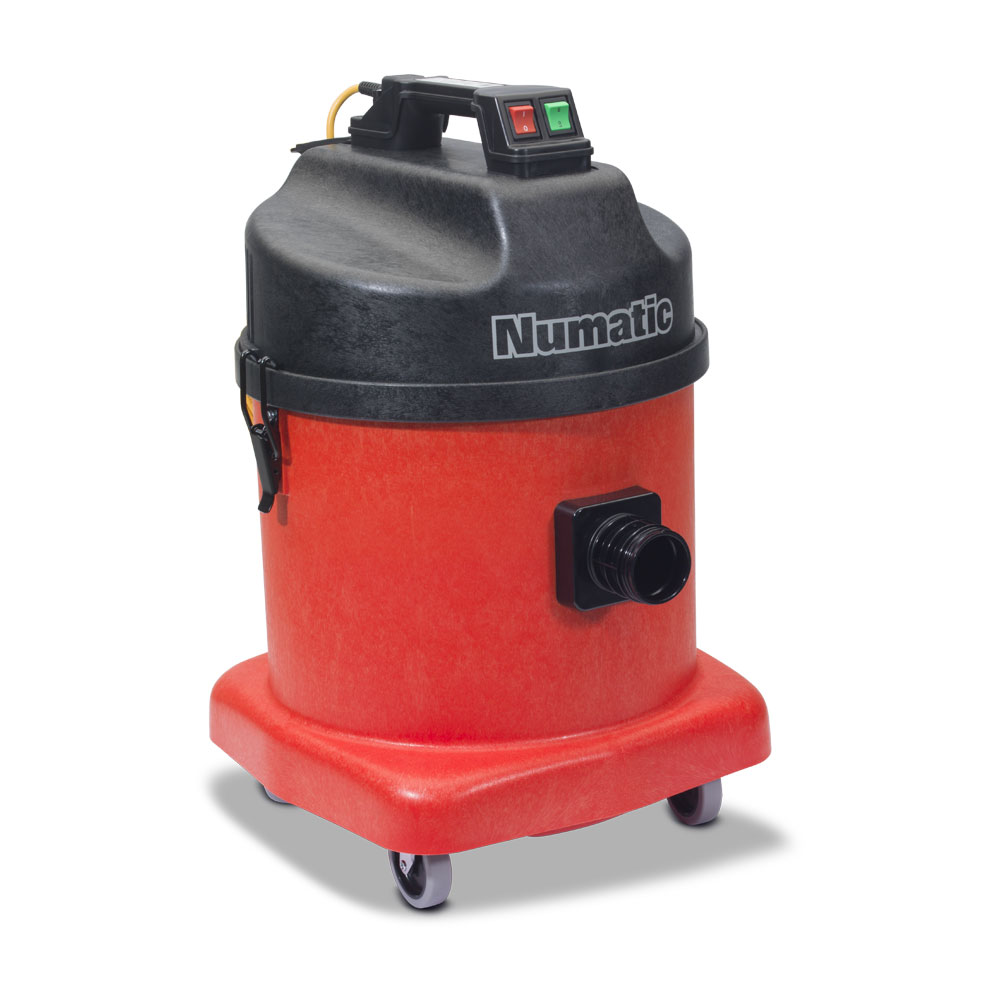

NVQ570 - Numatic Large Industrial Vacuum Cleaner
The Numatic NVQ570 brings a 23-litre dry collection capacity to routine cleaning in workshops, stores and commercial maintenance areas. It provides room for everyday dust and debris when a smaller vacuum requires frequent attention, with a wheeled design that can move between work areas.
Structofoam forms both the head and body, giving the machine a robust construction for regular handling. Fully directional front castors help operators position it around furniture and equipment, while its 10-metre cable provides reach from a suitable power socket.
A single 960W TwinFlo motor works with the AirFlo design and compatible HepaFlo bags. The BS2 accessory kit includes stainless steel tubes and tools for floor and detail cleaning, allowing the operator to select the appropriate tool for the surface being cleaned.
Choose the NVQ570 for indoor dry cleaning, with the correct bag and filters fitted for the material collected. For a smaller collection capacity, compare the Numatic NVQ240 dry vacuum; for another industrial option, view the Numatic NTT2003-2 and check its specification against your task.
Key Features & Benefits
- 23-litre dry capacity: accommodates routine debris collection across commercial work areas.
- Structofoam head and body: durable construction designed for regular industrial use.
- Single TwinFlo motor: 960W motor with AirFlo airflow design.
- HepaFlo bag compatibility: uses the specified NVM-3BH bags to collect dust inside the drum.
- Mobile design: directional front castors help with movement and positioning.
- BS2 accessory kit: stainless steel tubes and floor and detail tools support varied cleaning tasks.
Directions for Use
Check the cleaning task and machine
Read the Numatic NVQ570 instruction manual before operation. Inspect the cable, hose and tools, and confirm that the material is suitable for this indoor dry vacuum.
Fit the bag, filters and tools
With the plug removed, fit the specified NVM-3BH bag and filter components according to the manual. Connect the hose and tubes securely, then select the appropriate floor or detail tool.
Vacuum suitable dry debris
Route the cable clear of traffic and work systematically over the area. Do not collect liquids, hot ash or burning debris. Stop and unplug the machine before investigating reduced suction or a blockage.
Empty, inspect and store
Disconnect the power before changing the bag or maintaining the machine. Check the bag and filters regularly, keep hoses clear, inspect for damage after use and store indoors in a dry place.
Product Specifications
| Specification |
Details |
| Manufacturer and model |
Numatic NVQ570 |
| Manufacturer reference |
833282 |
| Cleaning type |
Indoor dry vacuum |
| Drum capacity |
23 litres |
| Motor |
Single 960W TwinFlo motor |
| Power supply |
230V AC, 50/60Hz |
| Cable / cleaning range |
10m / 26.8m |
| Dimensions |
415 × 415 × 645mm |
| Construction |
Structofoam head and body |
| Compatible bags |
NVM-3BH HepaFlo, part 604017 |
| Accessory kit |
BS2 |
FAQs
Is the NVQ570 suitable for wet pickup?
No. This model is for dry materials indoors. Liquid recovery requires an appropriate wet and dry vacuum; changing a bag or tool does not convert the NVQ570 into one.
Does this model have two motors?
No. The NVQ570 has a single motor. The similarly named NVDQ570 is the twin-motor model, so check the full model designation when comparing machines.
Which dust bags does it use?
Numatic specifies NVM-3BH HepaFlo bags, part 604017. Use the correct bags together with the required filters, and replace a full or damaged bag before continuing cleaning.
What is the collection capacity?
The drum has a 23-litre dry capacity. Check the bag during use and replace it when required; the material collected and bag condition affect how often it needs changing.
What accessories are supplied?
The listed kit is BS2, with stainless steel tubes, a hose, floor tool, dusting brush and crevice tool. Select the tool that suits the surface and follow the machine instructions when assembling it.
Can it collect hazardous dust?
Do not select it solely because it is described as industrial. This model is not suitable for biological hazards or explosive dust; assess other specialist materials against the required machine classification before use.
