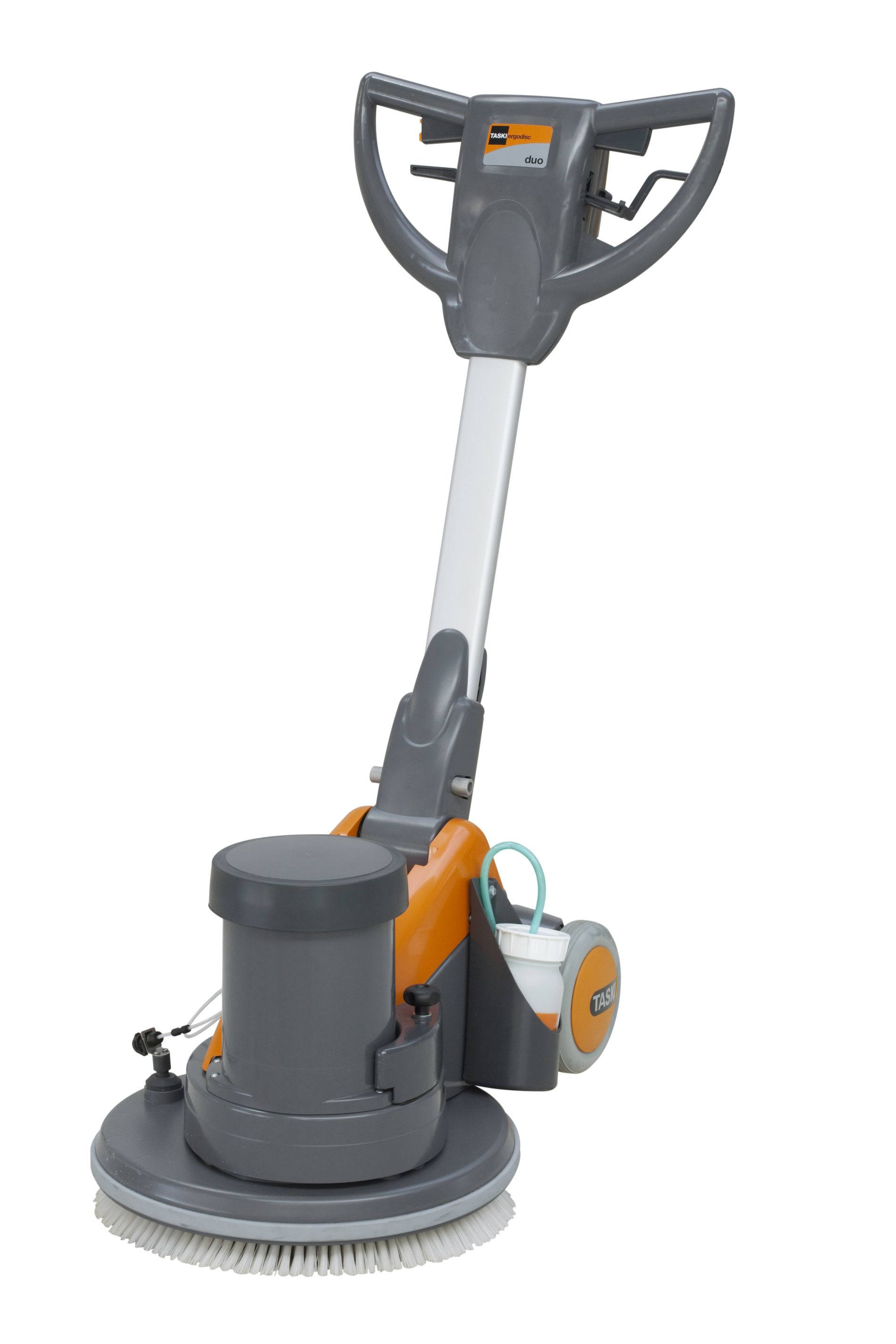

TASKI Ergodisc Duo Twin‑Speed Floor Machine
This machine requires the High Speed 17" floor pad additionally see bellow.
The TASKI Ergodisc Duo combines two machines in one, offering both low‑speed and high‑speed operation at the turn of a switch. This makes it one of the most flexible and cost‑efficient rotary machines in the TASKI range. Whether you’re tackling deep scrubbing, stripping old polish, spray cleaning, buffing, shampooing or even wood treatment, the Ergodisc Duo delivers consistent, professional results with minimal operator fatigue.
Versatile for All Floor Types
Suitable for:
• Vinyl
• Safety flooring
• Wood
• Marble
• Stone
• Carpet (with shampooing accessories)
Multi-speed single disc machine: two powerful machines in one
Key features
• Ergonomics
• Safety
• Simplicity
• Versatility
The ergodisc duo is especially suited for the following tasks:
• Wet scrubbing
• Stripping
• Buffing
• Spray cleaning
• Shampooing
• Wood treatment
• Crystallisation
• Crinding
Ergonomics
Better working conditions improve productivity through:
• Anatomically formed grip
• Adjustable handle bar height
• Low vibration level
• Low noise level
• Soft start characteristics
Safety
Creates a safer working environment through:
• Hand protection due to closed handle
• High electrical safety due to double insulation
• Double safety lock
Simplicity
Ease of use results in improved efficiency through ease of:
• Training and operation
• Attachment of accessories, no tools required
• Storage and transportation, enabled by a foldable handle and removable weight
Versatility
Multi-purpose, cost-efficient machine:
• Adaptable to many different cleaning tasks
• Full range of accessories available
Technical data
Arbeitsbreite 43 cm Voltages available 230 V / 50 Hz
Geschwindigkeit 165/330 rpm Cable length 15 m
Weight 48 kg (option to remove 5 kg) Noise level 57 dB(A)
Motor height 42.5 cm Protection class II
Nominal consumption 1100 W Approvals CE/CB Test cert / ÖVE/SEV
Model SKU number
TASKI® ergodisc duo 7522310
ergodisc duo
TASKI is one of four core areas of the Diversey business. © 2020 Diversey, Inc. All Rights Reserved. 56995-PSS en 9/20
Accessories SKU number
Scrubbing brush 43 cm 8504750
Driving disc 43 cm, standard / high speed 8504410 / 7510030
Water tank 8504390
Foam generator 230 V 8504660
Dispensing unit mechanical 8504370
Suction skirt / splash protection 8505440
Suction unit 230 V 8504380
Double filter paper bags (10-pack) / HEPA filter 8505100 / 8505180
An overview of other accessories, brushes, pad drives and pads is available on request.
Additional Features
Foam generator: The foam generator, with integrated compressor, allows economic dry foam carpet cleaning. A short drying time
allows fast re-use of the area.
Vacuum unit and suction skirt: The combination of vacuum unit and suction skirt is an ideal solution to prevent dust emission into
the air. During spray cleaning, the skirt also acts as a splash protector.
Water tank: The best accessory for wet scrubbing and deep cleaning. The tank fits perfectly onto the machine and has a big opening
for easy filling.
Robustness:
TASKI ergodisc is an innovative range of single disc machines. The use of high-tech materials creates robust, shock
absorbing machines with an extended lifetime and low service costs.
All TASKI ergodisc machines come with 2 years warranty.
TECHNICAL DATA
| TECHNICAL DATA |
|
TASKI ergodisc duo |
| Working width |
cm |
43 |
| Rotation |
1/min |
165/330 |
| Weight |
kg |
43 |
| Additional weight |
kg |
5 |
| Nominal consumption |
W |
1100 |
| Rated voltage |
V / Hz |
230/50 |
| Cord length |
m |
15 |
| Protection class |
|
II (SEV, TÜV-GS geprüft) |
| brush pressure |
N/cm2 |
0.4 |
