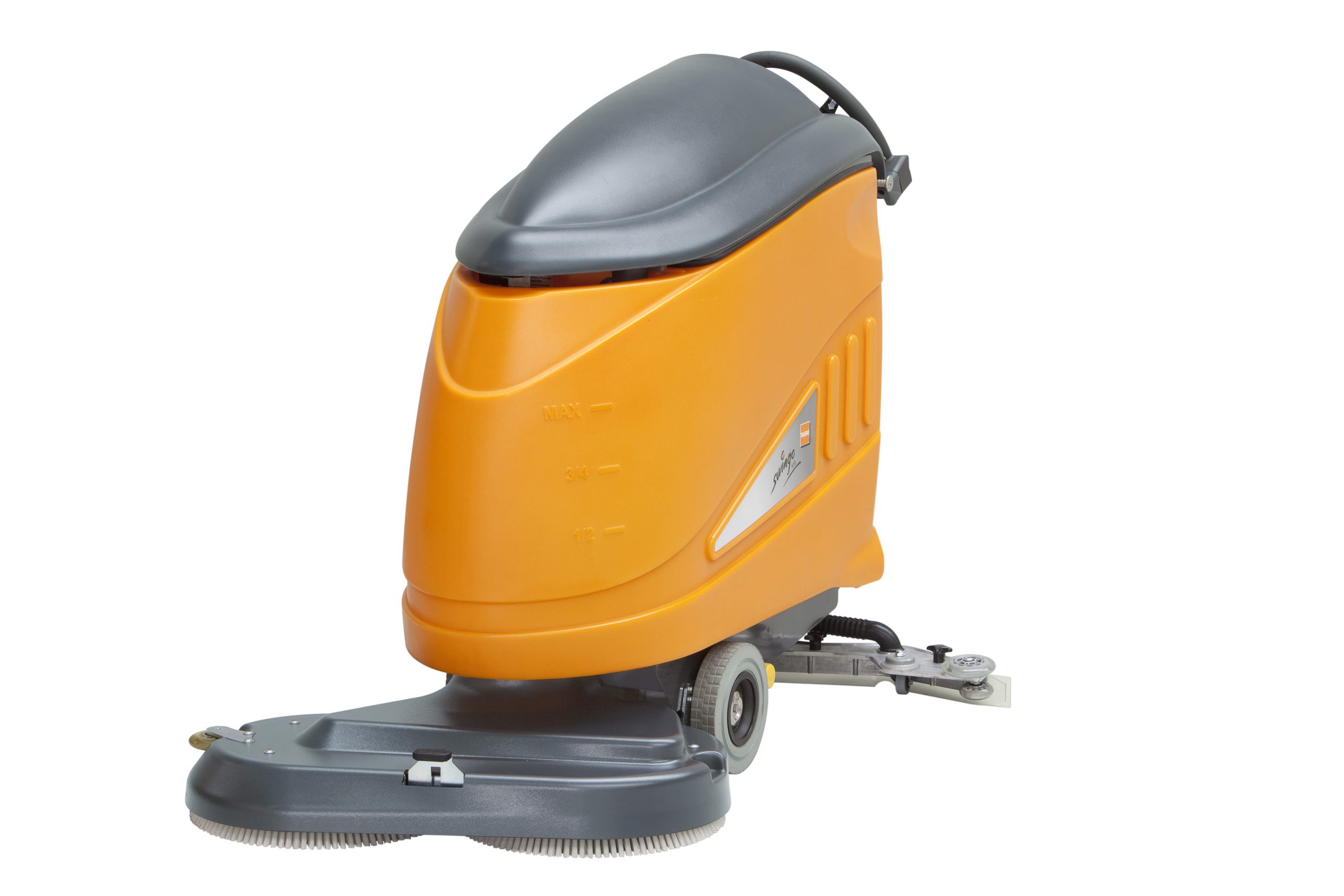

swingo® 1850 B
Large battery-powered automatic scrubber drier
Price includes Battery set + External Charger and 2 x 17" Pad drive
Key features
• Increased productivity
• Excellent cleaning results
• Simplicity and ergonomy
• Easy maintenance
Increased working autonomy
A big tank and the highly efficient IntelliFlow system which reduces
water consumption by up to 40%, give great water autonomy and allow
cleaning of up to 2500 m² without time-consuming tank-filling stops.
The wide working width of 85 cm helps you to increase productivity and
to achieve significant time savings.
Excellent cleaning result and immediately dry floors
The brushes perfectly follow the floor profile and therefore deliver ideal
soil removal. Thanks to the w-shaped squeegee which delivers a bestin-class drying result, the machine can be used at any time of the day,
reducing the potential risk of slip/fall accidents caused by wet floors.
Simplicity and ergonomy

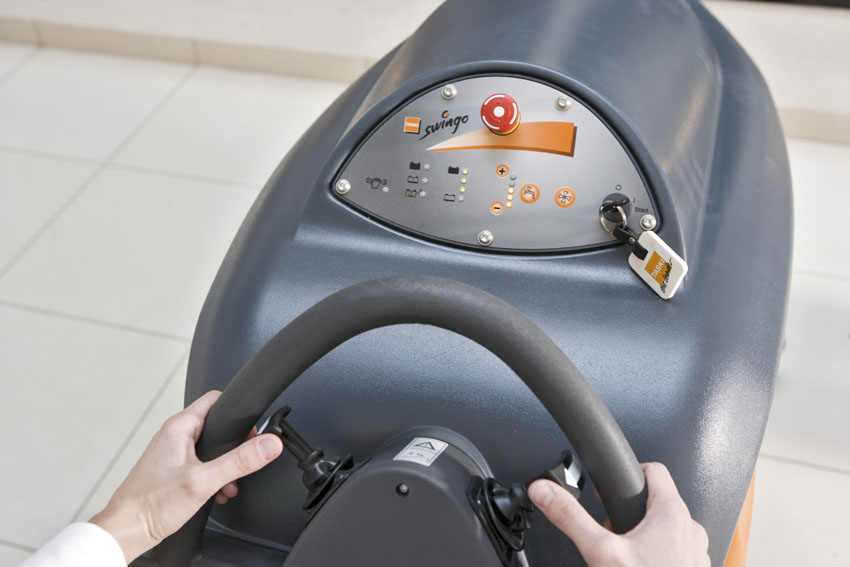

With excellent ergonomics and simple, intuitive controls, the machine
reduces operator fatigue and training needs to a minimum.
Easy maintenance
All parts which need frequent cleaning/maintenance are colour coded
in yellow and can be removed within seconds. This makes maintaining
the machine self-explanatory and easy – which ensures always the
best result and extends the machine’s lifetime.
Technical data
Theoretical performance 3825 m2/h Dimensions (L x W x H) 162 x 88 x 119 cm
Working width 85 cm Brush system 2 x 43 cm
Squeegee width 110 cm Brush pressure (maximum) 0.18 N/cm2
Solution tank 85 L Cleaning speed 4.5 km/h
Recovery tank 85 L Max. ramp 2.0 %
Nominal consumption 1,200 W Sound level 62 dB(A)
Battery capacity (max) 180 Ah/C5 Protection class
(BMS/non BMS) III
Battery capacity 3-4 hours Approvals CE/CB Test certificate
Machine weight ready for use
(including water) 345 kg
Model Article code
TASKI® swingo® 1850 B
TASKI® IntelliDose®
swingo® 1850 B
Accessories/Additional parts Article code
Pad drive harpoon grip 43 cm 7517858
Scrubbing brush standard 43 cm 7517859
Scrubbing brush abrasive 43 cm 7517861
TASKI contact pad 43 cm 7505220
TASKI 3M pad 43 cm White/Red/Blue/Brown/Black Please refer to list
TASKI 3M pad 43 cm Purple (Diamond pad)
Filling hose with universal coupling
Optional wheels: polyurethane brown and polyurethane green (supergrip) Option
Description of Features
BMS (Battery Management System): The battery charger is integrated into the machine. A monitoring
system prevents deep discharging of the battery and controls the charging process.
IntelliFlow: With the patented IntelliFlow system exactly the right amount of cleaning solution is dosed onto the
floor. The result is no puddles in curves and turns as well as a 30-40% saving in cleaning solution, which leads
to significantly increased productivity of the machine.
IntelliDose: IntelliDose is a chemical dilution system that will help you to achieve consistently high cleaning
results, control your costs and simplify your machine operation, and to avoid overdosing.
